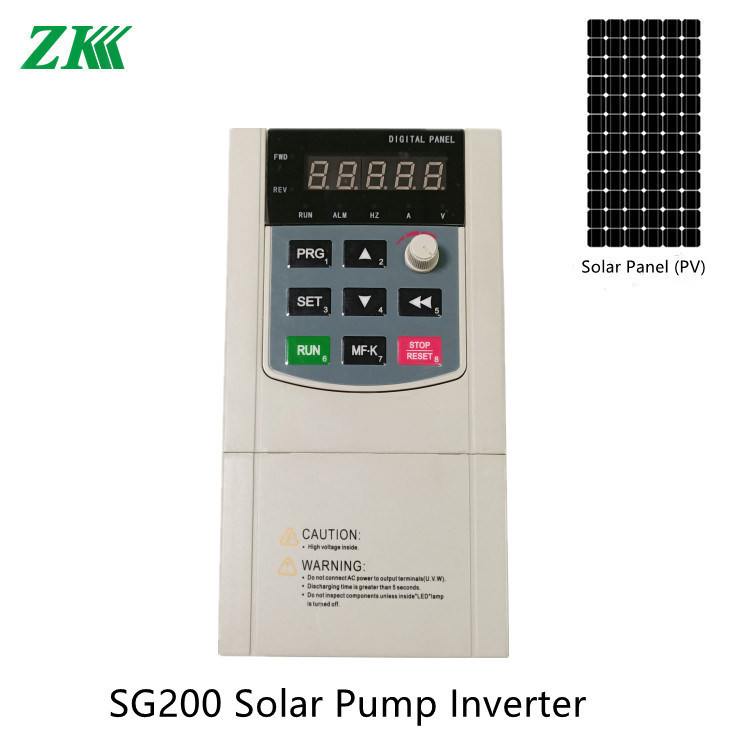

SG200 0.75kw To 5.5kw MPPT VFD Solar Pump Inverter For AC Pumps Control

Product Details

Place of Origin: China

Brand Name: ZK

Certification: CE IEC

Model Number: SG200-4T

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: 90usd to 200usd

Packaging Details: perpar cartons

Delivery Time: 3-5 days

Payment Terms: T/T

Supply Ability: 2000pcs per month

Get Best Price
Product Details
High Light:

5.5kw MPPT VFD Solar Pump Inverter

,

MPPT VFD Solar Pump Inverter

,

0.75kw Solar Pump Inverter

Current:
1.1 To 13A
DC Input:
250-800VDC
Best Vmp:
540VDC
Voc Recommend:
660VDC
AC Output:
380V+-15%
Rated Power:
0.75kw To 5.5kw
Pumps Protection:
Over Current, Over Voltage And Short Cuicuit Protection
Lightning Protection:
Yes
MPPT Efficiency:
Above 99.6%
Current:
1.1 To 13A
DC Input:
250-800VDC
Best Vmp:
540VDC
Voc Recommend:
660VDC
AC Output:
380V+-15%
Rated Power:
0.75kw To 5.5kw
Pumps Protection:
Over Current, Over Voltage And Short Cuicuit Protection
Lightning Protection:
Yes
MPPT Efficiency:
Above 99.6%
Product Description

SG200 380V 0.75k to 5.5kw series solar pump inverter compatible with dual supply mode

The solar pump inverter operates in dual supply mode either with a three phase input supply from the grid or with DC input supply from PV cells.

A four-pole changeover switch enables switching between the two supply modes. At a given time only one power supply (PV cell or grid) can be connected to the drive.

SG200 0.75kw To 5.5kw MPPT VFD Solar Pump Inverter For AC Pumps Control 0
The DC and AC also can connected to inverter at the same time (Hybrid input)



Solar Pumping System overview
Solar pumping systems can be applied to all forms of daily use, water pumping for drinking water supply for remote villages and farms without connection to the water grid, for agricultural use such as livestock watering, agricultural irrigation, forestry irrigation, pond management, desert control, and industrial use such as waste water treatment etc.



The PV generator, an aggregation of PV modules connected in series and in parallel, absorbs solar irradiation and converts it into electrical energy, providing power for the whole system. The pump drive controls and adjusts the system operation and converts the DC produced by the PV module into AC to drive the pump, and adjusts the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking (MPPT). The pump, driven by 3-phase AC motor, can draw water from deep wells, rivers and lakes and pour it into storage tanks or reservoirs, or be connected directly to the irrigation system, fountain system, etc. According to the actual system demand and installation condition, different types of pumps such as centrifugal pump, axial flow pump, mixed flow pump or deep well pump can be used.
Solar pump system constitution.

Providing clean, environmentally safe water for livestock in sufficient quantities continues to be a major concern for farmers and ranchers. Abundant water in remote locations in needed to insure that grasslands are grazed evenly.



Solar pump Inverter has following advantages:

  • Ground water lowering,
  • Irrigation systems
  • Industrial Application
  • Drip irrigation& sprinkler
  • Tank/ cistern filling
  • Wildlife refuge, Fountains
  • Rural water supply for ranches, cabins, and cottages

SG200 380V 0.75kw to 5.5kw solar pupm inverter features



Several advantages of SG300/320 solar pump inverter

  • Maximum power point tracking (MPPT) with fast response and stability operation, up to 99.80% efficiency.
  • Enable to drive for PMSM high speed and high efficiency pumps without motor ID auto tuning
  • Dry run (under load ) protection, lowest speed auto tuning , Pumps maximum current protection, Minimum power input protection...
  • The PQ (power/flow) performance curve enables to calculate the flow output from the pump
  • Dual mode AC and DC power supply input is available
  • Digital signal of water level sensor and analog signal of water level sensor for water tank fulling detect.
  • Dedicated hardware design with dual CPU, independent air duct desige
  • IGBT module such as Infineon, Fuji,TYCO , Star power to ensure good quality
  • Enhanced lightning protection module
  • GPRS remote control module for distance monitoring, control, parameters modification, and history data record..
  • Efficiency is higher than 99.5%
  • Timer controller for timer control.

SG200 solar Pump inverter  specification.



**solar pump inverter specification when FA-00 set to 1&2 for solar pumping controlling function.
Recommended MPPT voltage range

DC for 2S ( 150V to 350VDC input, 3PH 220 to 240VAC output)

Vmp 486 to 650 VDC for 4T ( 250V to 800VDC input, 3PH 380 to 460VAC output)

Recommended input

VOC 648(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps

Motor type

Control for permanent magnet synchronous motor and asynchronous motor pumps.

1 phase or 3 phase 220VAC pumps.

Rated output voltage 3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V
Output frequency range 0~maximum frequency 600Hz. Resolution 0.01 Hz
MPPT efficiency 99.7%, more efficiency if use to drive PMSM pumps
Ambient temperature range

G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s .

P type for general pumps, 120% rated current for 60s, 150% rated current for 2s

Solar pump control special performance MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected
Protection function Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection, lightning protection
Protection degree IP20, Air force cooling
Running mode MPPT or CVT
Altitude Below 1000m; above 1000m, derated 1% for every additional 100m.

Standard

AC input backup circuit

CE, Design based on vector control drive S300 and S3200 series, more specification please refer to S300 or S320 vector control drive operation manual
Auto stop and auto restart

Control by external switch, float switch, Rs485 communication.

It will auto start at morning when get enough power from sunlight, and stop at sunset when power is less from solar panel under terminals control mode

Technical specification when it used for speed and torque controlling of motor as FA-00 set to 0.
voltage, frequency

Single phase 220V, 3 phase, 220V,380V, 660V and 1140V. Input

Power 0.75kw to 37kw.

Control mode 0: VF control ; 1: Vectorized VF control ; 2:Open loop vector control 1 ; 3: High performance open loop vector control 2
Maximum frequency 0-650Hz
Multiple-functions PID Control, Carrier Frequency Adjustable, Current Limiter, Speed Search, Momentary Power Loss Restart,16 Step Speed (Max), 3-Wire connection, Slip Compensation, Frequency Jump, DC braking, Upper/Lower Frequency, Torque control, Compatible for PMSM and IM, built in RS485, counting, fault information checking, fully fault protection function, frequency combination reference.



Solar panels configuraton



Input voltage, total power solar arrays selection.

Input voltage, power solar arrays selection
Pumps model Inverte models Vmp Voc Total Power of solar arrays
110VAC pumps 1S 110*1.41=130VDC 156VDC

≧ (1.3 to 2.0) rated power of pumps

It is also depend on the quality of solar panels. The more power input, the better performance.

220VAC pumps 2S 220*1.41=310VDC 372VDC
380VAC pumps 4T (Max 800VDC) 380*1.41=540VDC 648VDC
480VAC pumps 4T ( Max 900VDC) 480*1.41=677VDC 812VDC



Solar arrays selection table for inverter and pumps.

Take solar panels Voc38VDC, Vmp 31VDC, 265W.
Please check if enough DC voltage for system, Voc and Vmp. If the input is correct, the inverter will not work properly. If the output frequency is not high, lower than 50/60Hz even in good sunlight radiation, please check if enough solar panels have been connected. The total power should be at least bigger 1.3 times than of rated power of pumps.



265w, 38Voc (Open circuit voltage), 31Vmp ( Voltage at Pmax)
Inverter models Power of pump Connection in series (PCS) (Vmp) Connect in parallel ( Strings) Power Total (PCS)
1S (110VAC) 0.75kw to 1.0kw 4 or 5 PCS 1* strings 5*1=5
2S (220VAC) 0.75kw to 1.5kw 10PCS 1* strings 10*1=10
2S (220VAC), Max 450vdc 2.2kw 11PCS 1* strings 11*1=11
4T(380VAC) 0.75kw to 2.2kw 18PCS 1* strings 18*1=18

4T(380VAC)

Max 900VDC

3.7kw 20PCS 1* strings 20*1=20
4T(380VAC) 5.5kw 18PCS 2* strings 18*2=36

4T(380VAC)

Max 900VDC

7.5kw 20pcs 2* strings 20*2=40
4T(380VAC) 11kw 18pcs 3* strings 18*3=54

4T(380VAC)

Max900VDC

15kw 20pcs 4* strings 20*4=80
