Product Details
Place of Origin: CHINA
Brand Name: ZK ZUN
Certification: CE
Model Number: SG320-0K75GB-2S-M
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 66-75 Piece
Packaging Details: 178*133*150mm Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece per day
Power: |
0.75kw |
Input Voltage: |
90Vdc To 450Vdc |
Output Voltage: |
220V 240V |
Current: |
4A |
Output Type: |
Single Phase |
Output Frequency: |
50Hz Or 60Hz |
Weight: |
1.1kg |
Size: |
178*133*150mm |
Power: |
0.75kw |
Input Voltage: |
90Vdc To 450Vdc |
Output Voltage: |
220V 240V |
Current: |
4A |
Output Type: |
Single Phase |
Output Frequency: |
50Hz Or 60Hz |
Weight: |
1.1kg |
Size: |
178*133*150mm |

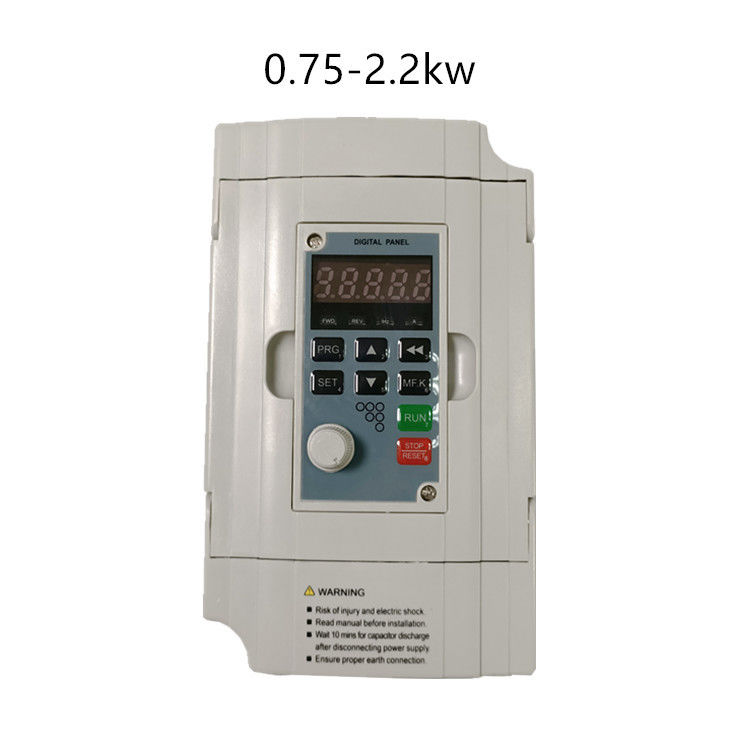

Mini 0.75kw 220V 240V Single Phase 90Vdc To 450Vdc Solar Pumping Inveter
Model:SG320-0K75GB-2S-M
SG320-mini size solar pump inverter hardware design
1. Input from top, output from bottom design
2. Independent air duct for good heat dissipation
4. Infineon/Fuji Igbt for 4T
Descriptions and Features
1.Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
2.It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
3.Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
4.Multiple power supply design, power input can be solar energy photovoltaic DC power supply, can also
be single phase or three phase AC power, simple wiring.
5.Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
6.Protect itself in trouble and improve the reliability of whole system.
7.LED display operating panel and support remote control,LCD display also available now.
Suggestion of driving single phase AC pumps:
Note: Please select bigger rated power of inverter for driving single phase pumps, because the
current of 1 220VAC phase pumps is bigger than 3 phase 220V AC pumps.
| S.N | SPI Models | Rate current(A) | Input DC range(V) |
Package size |
Weight |
| Mini type: 2S, 90-450VDC input range, Output 0-220VAC with MPPT | |||||
| 1 | SG320-0K75GB-2S-M | 4 | 90-450 | 178*133*150 | 1.1 |
| 2 | SG320-1K5GB-2S-M | 7 | 90-450 | 178*133*150 | 1.1 |
| 3 | SG320-2K2GB-2S-M | 10 | 90-450 | 178*133*150 | 1.2 |
Software Desgin
1. Dual Supply Mode - Solar DC and Grid AC Compatible
2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function
Hardware Design
1. Innovation Design with Dual CPU
2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Fuji IGBT Module
5. Long Term Service Life Design
6. Optional GPRS Remote Control
FAQ:
Q1:What's the delivery time?
A1:3-5 days for sample order;10-25 days for bulk order.
Q2:What's the warranty?
A2:18months.
Q3:How to choose suitable converter for machine ?
A3: Please send us your motor details, we will select you most suitable model.
Q4: Can I customize the product?
A4: Yes,we can print your Logo,customize your package,and Special function inverter.
Q5: Do you support OEM service ?
A5: Yes,please send us more details.
Q6: Do you have any MOQ limit?
A6:1 pc for sample is available.
