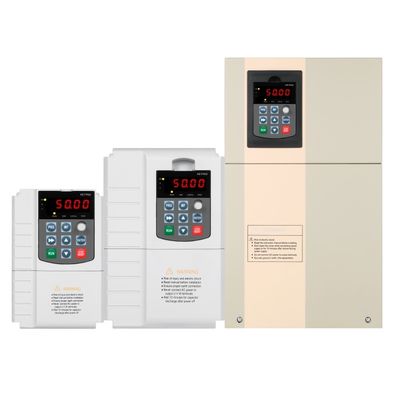

1HP-100HP 380v Solar Photovoltaic Inverter PMSM Motor For Irrigation System

Product Details

Place of Origin: China

Brand Name: ZK

Certification: CE

Model Number: SG600

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiate

Packaging Details: Standard

Delivery Time: 3-8days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 6000 units per month

Get Best Price
Product Details
High Light:

Hybrid Solar Photovoltaic Inverter

,

100HP Solar Photovoltaic Inverter

,

Irrigation System Hybrid Solar Pump Inverter

Running Mode:
MPPT Or CVT
Voltage:
380VAC/ 250-800VDC
Product Name:
Solar Pump Inverter
Motor Type:
PMSM And IM
Efficiency:
99.8%
Frequency:
50/60hz
Application:
Irrigation System
OEM:
Support
Running Mode:
MPPT Or CVT
Voltage:
380VAC/ 250-800VDC
Product Name:
Solar Pump Inverter
Motor Type:
PMSM And IM
Efficiency:
99.8%
Frequency:
50/60hz
Application:
Irrigation System
OEM:
Support
Product Description





Sun great series solar water pumping features:

Software design with dual MPPT tracking.

* Dual supply mode - Solar DC and Grid AC compatible input.

* Compatible with all 3 phase pumps, IM And PMSM

* Possible to drive for 1 phase 220AC pumps with or without starting capacities.

* Dry Run Function for pumps protection when lack of water in well.

* Automatic Start And Stop With Solar Irradiation/ Manual

* Lowest stop Frequency setting.

* Pumps Max Current Setting,

* Water Tank fulling Level Detect Function,

* Flow And Generated Energy Calculating And Monitor without sensor

* GPRS Remote Control Is Option-- working status real time monitoring, history working data reorder, remote start/stop including the parameters modify.

* Maximize your pump delivery with MPPT function, better water delivery than other brand.







1HP-100HP 380v Solar Photovoltaic Inverter PMSM Motor For Irrigation System 0





PV inveretr technical information



Recommended MPPT voltage range Vmpp 131 to 350 VDC for 1S (80V to 350VDC input, 3PH 110 to 220VAC output)
Vmpp 280 to 375VDC for 2T ( 150V to 350VDC input, 3PH 220 to 240VAC output)
Vmpp 486 to 800 VDC for 4T ( 250V to 900VDC input, 3PH 380 to 460VAC output)
Recommended input voltage (Voc and Vmmp) Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps
Voc 355(VDC), Vmpp 310(VDC) for 2T model or 220V AC pumps
Voc 620(VDC), Vmpp 540(VDC) for 4T model or 380V AC pump
Motor type Control for permanent magnet servo motor and asynchronous motor pumps.
Input power DC power from solar arrays or AC grid power
Maximum DC power input 450VDC for 220-240VAC output /900VDC for 380-460VAC output
Rated output voltage 3-phase , 110V/160V/220V. 3-phase, 220V/240V/380V/460V/480V
Output frequency range 0~50/60Hz
MPPT efficiency 97%,
Ambient temperature range (G-type inverter with submersible pumps, and P type for general pumps.
Solar pump control special performance MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation,
dry run protection, low stop frequency protection, minimum power input, motor maximum
current protection, flow calculating, energy generated calculating
Protection function Phase loss protection, phase short circuit protection , ground to phase circuit protection , input
and output short circuit protection. Stall protection
Protection degree IP20, Air force cooling
Running mode MPPT , CVT, variable frequency mode
Altitude Below 1000m; above 1000m, derated 1% for every additional 100m.
