• Waterproof 5.5KW 3 Phase Solar Pump Inverter Solar Variable Frequency Drive
Waterproof 5.5KW 3 Phase Solar Pump Inverter Solar Variable Frequency Drive

Waterproof 5.5KW 3 Phase Solar Pump Inverter Solar Variable Frequency Drive

Product Details:

Place of Origin: CHINA
Brand Name: ZK ZUN
Certification: CE
Model Number: SG600-5.5KW-D-IP54

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 200-230 Pieces
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Piece per day
Get Best Price Contact Now

Detail Information

Power: 5.5KW Current: 13A
Input Voltage: 250-800Vdc Output Voltage: 380V 440V 460V
Output Type: Triple Phase Output Frequency: 50Hz Or 60Hz
Waterproof Degree: IP54 IP65 Display: LED LCD
High Light:

13A 3 Phase Solar Pump Inverter

,

5.5KW 3 Phase Solar Pump Inverter

,

5.5KW Solar Variable Frequency Drive

Product Description

IP54 IP65 Waterproof 5.5KW 3 Phase Outdoor Solar DC To AC Pump Drive



Model:SG600-5.5KW-D-IP54



Solar pump inverter, also named solar variable frequency drive (VFD): electrical energy from photovoltaic solar panels to drive AC motor water pumps.
1. Internal with Maximum Power Point Tracking (MPPT) controller system, it can track maximum power of solar panels, and effective to increase the output power of the solar panels.
2. Implement work throughout the day. It can work from sunrise to sunset, greatly improving the water pump effective working hours a day.
3. Automatically adapt to changes and cloudy weather. Effectively avoid the traditional pump suddenly overcast, the system will stop phenomenon.
4. System has strong anti-jamming capability, in the depth of 200 meters, the system can still be reliable work.

5.LED display operating panel and support remote control,LCD display also available now.





ZK Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.

SG600 sealed frequency inverter is enhanced version of SG600 series solar pump inverter, built in with IP54 IP65 protection grade.With excellent in anti-dust, water proof, anti-grease and anti-corrosion properties, this inverter can using in outdoor without waterproof cabinet.



Applications

  1. Ground water lowering,

  2. Irrigation systems

  3. Industrial Application

  4. Drip irrigation& sprinkler

  5. Tank/ cistern filling

  6. Wildlife refuge

  7. Rural water supply for ranches,

  8. cabins, and cottages

  9. Fountains.

  10.

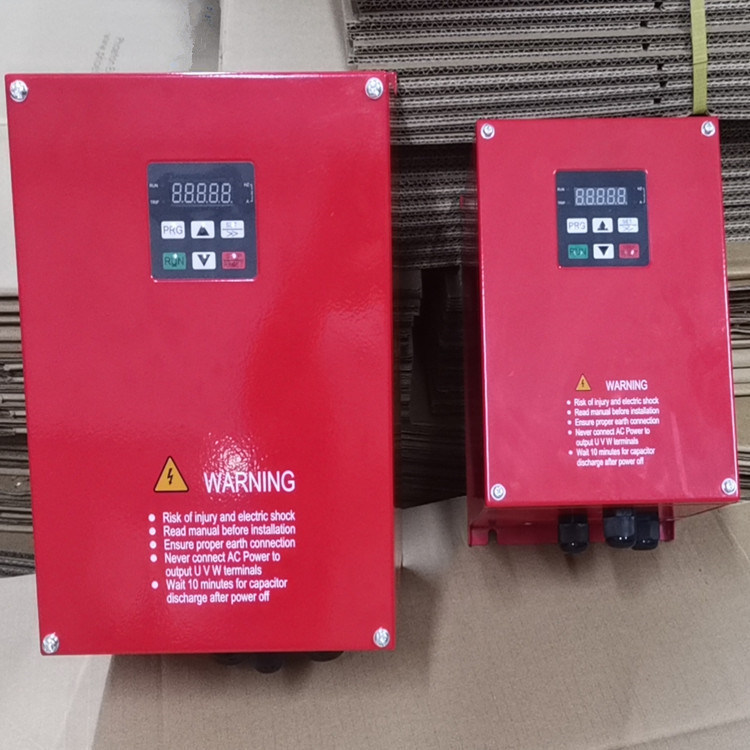

Waterproof 5.5KW 3 Phase Solar Pump Inverter Solar Variable Frequency Drive 0





Specification:



Motor type

Control for permanent magnet synchronous motor and asynchronous motor pumps.

Rated output voltage

3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V

Output frequency range

0~maximum frequency 600Hz.

MPPT efficiency

97%,

Ambient temperature range

G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s . P type for general pumps, 120% rated current for 60s, 150% rated current for 2s

Solar pump control special performance

MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected

Protection function

Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection, lightning protection

Protection degree

IP54,IP65 Air force cooling

Running mode

MPPT or CVT

Altitude

Below 1000m; above 1000m, derated 1% for every additional 100m.

Enhanced version of AC drive

CE, Design based on vector control motor AC drive, more specification please refer to S600 or S100 vector control drive operation manual



Model List:



IP54 outdoor uisng: 4T type, 250 to 800VDC or 380VAC input, 3 Phase 0-380VAC ouptut
S.N MODELS PICTURES Rate current (A) Rated Power DC input range Best Voc input Output voltage
1 SD600-4KW-D-IP54 10A 4.0KW 4.0KW 250-800 650 0-380
2 SD600-5.5KW-D-IP54 13A 5.5KW 5.5KW 250-800 650 0-380
3 SD600-7.5KW-D-IP54 17A 7.5KW 7.5KW 250-800 650 0-380
4 SD600-4K0GB-4T-IP54 10A 4.0KW 4.0KW 250-800 650 0-380
5 SD600-5K5GB-4T-IP54 13A 5.5KW 5.5KW 250-800 650 0-380
6 SD600-7K5GB-4T-IP54 17A 7.5KW 7.5KW 250-800 650 0-380
7 SD600-011GB-4T-IP54 25A 11KW 11KW 250-800 650 0-380
8 SD600-015GB-4T-IP54 32A 15KW 15KW 250-800 650 0-380
9 SD600-018GB-4T-IP54 37A 18KW 18KW 250-800 650 0-380
10 SD600-022GB-4T-IP54 45A 22KW 22KW 250-800 650 0-380



FAQ:

Q1:What's the delivery time?
A1:3-5 days for sample order;10-25 days for bulk order.



Q2:What's the warranty?

A2:18months.



Q3:How to choose suitable converter for machine ?

A3: Please send us your motor details, we will select you most suitable model.



Q4: Can I customize the product?

A4: Yes,we can print your Logo,customize your package,and Special function inverter.



Q5: Do you support OEM service ?

A5: Yes,please send us more details.



Q6: Do you have any MOQ limit?

A6:1 pc for sample is available.
