Product Details
Place of Origin: Shenzhen China
Brand Name: ZK/ZUN
Certification: ISO CE
Model Number: S100-2K2GB-2S-M
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000 units per month
Name: |
2.2kw Variable Frequency Inverter |
Input Voltage: |
Single Phase 220Vac (-10%~+30%) |
Output Voltage: |
Three Phase 0-220VAC |
Rated Current: |
10A |
Color: |
White Or Black |
Control Mode: |
Vector Control, V/F, Cloosed Loop Control |
Customized: |
Support |
Certification: |
CE And ISO Certificated |
Name: |
2.2kw Variable Frequency Inverter |
Input Voltage: |
Single Phase 220Vac (-10%~+30%) |
Output Voltage: |
Three Phase 0-220VAC |
Rated Current: |
10A |
Color: |
White Or Black |
Control Mode: |
Vector Control, V/F, Cloosed Loop Control |
Customized: |
Support |
Certification: |
CE And ISO Certificated |
AC To AC 220V Single Phase To Three Phase 1.5kw 2.2kw VFD Variable Frequency Converter

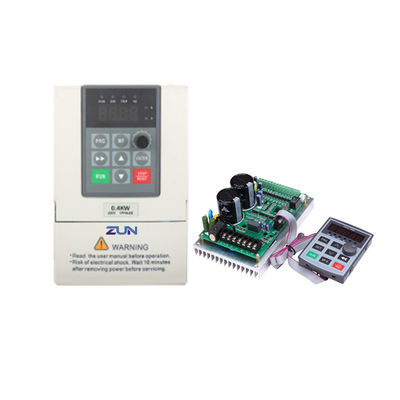

ZUN/ZK S100-2K2GB-2S-M 2.2KW single phase frequency inverter
Products Introduction
1).Control mode:open loop vector control (SVC); V/F control; open/close loop torque control
Starting torque:0.5Hz/150%
2).Speed range:1:100(SVC)
3).Steady speed accuracy: ±0.5%(SVC)
4).Overload capability: 150% rated current 60s; 180% rated current 10s
5).Automatic current limiting: automatic current limiting during operation to prevent frequent overcurrent fault trips
Motor parameter rotation, static self-learning
6).Automatic energy-saving operation: automatically optimize the V/F curve according to the load situation to achieve energy-saving operation
7).Automatic voltage regulation (AVR): automatically keeps the output voltage constant when the grid voltage changes
8).Automatic carrier adjustment: automatically adjust the carrier frequency according to the load characteristics
9).Realize the normal operation after a momentary power failure
10).Unique fast DC braking
11).Excellent control performance without speed sensor vector control
12).Realize the normal operation after a momentary power failure
13).Low frequency and large torque stable operation under vector control
14).Unique grid instantaneous power failure without downtime
15).Torque control operation
Technical Specifications
| Input&Output | Featured Functions | ||
| Input&Voltage | 1AC 220VAC(±20%) 3AC 220VAC(±20%) 3AC 380VAC(±20%) 3AC 480VAC(±20%) |
Featured Functions | Input&output delay Flexible parameters display AVR(automatic voltage regulation) Timing control, fixed length control, etc. Simple PLC, 16-step speed control Torque control build-in S curve acceleration/deceleration Multi-function proframmable keypad V/F separated control |
| Input Frequency | 50/60Hz±3% | ||
| Output Voltage | 0-input voltage, deviation <±3% | ||
| Output Frequency | 0-3200Hz | ||
| Control Characteristics | Environment Limitation | ||
| Control model | V/F control Sensor-less vector control |
Installation location | Without direct sunlight, free from dust, corrosive gases, oil mist, flammable gases, water vapor, water drop and salt, etc. |
| Speed accuracy | ±0.5%(V/f SVC) | ||
| Speed fluctuation | ±0.5%(SVC) | ||
| Torque response | < 10ms(SVC) | ||
| Starting torque | 0.3Hz: 150%(V/f SVC) | Altitude | 0-2000m Derated 1% for every 100m when the the altitude is above 1000 meters |
| Overload capability | 150% Rated current 60s 180% Rated current 10s 200% Rated current 1s |
||
| Simple PLC Multi-step speed |
16 steps speed External digital signal control intemal clock |
Ambient temperature | -20℃~+70℃ (Output derated while the termperature is higher than 40℃) |
| PID function | Standard build-in | Storage temperature | -20℃~+70℃ |
| Communication | Modbus RS485 | Relative humidity | 5-95%, no condensation |
Model List
|
Model |
Power Supply Capacity(KVA) |
Input Current(A) |
Output Current(A) |
Applicant Motor |
Dimensions(mm) |
Weight(kg) |
|
|
Single-phase power: 220v, 50/60Hz |
KW |
HP |
|||||
|
S100-2S0.7GB |
1 |
5.4 |
2.3 |
0.4 |
0.5 |
130*85*125 |
1.6 |
|
S100-2S1.5GB |
1.5 |
8.2 |
4 |
0.75 |
1 |
1.6 |
|
|
S100-2S2.2GB |
3 |
14 |
7 |
1.5 |
2 |
1.6 |
|
|
S100-2S4.0GB |
4 |
23 |
9.6 |
2.2 |
3 |
247*160*175 |
2.5 |
|
Three-phase power: 380v, 50/60Hz |
|
|
|
|
|||
|
S100-4T-0.7GB |
0.75/1.5 |
3.4 |
3/4 |
0.75 |
1 |
185*118*155 |
2.2 |
|
S100-4T-1.5GB |
1.5/2.2 |
5 |
4/6 |
1.5 |
2 |
2.25 |
|
|
S100-4T-2.2GB |
2.2/4 |
5.8 |
6/9.2 |
2.2 |
3 |
2.3 |
|
|
S100-4T-4.0GB/5.5PB |
4/ 5.5 |
11 |
9.2/13 |
3.7 |
5 |
2.35 |
|
|
S100-4T-5.5GB/7.5PB |
5.5 / 7.5 |
14.6 |
13/17 |
5.5 |
7.5 |
247*160*175 |
3.95 |
|
S100-4T-7.5GB/11PB |
7.5/ 11 |
20.5 |
17/25 |
7.5 |
10 |
4 |
|
|
S100-4T-11GB/15PB |
11/15 |
26 |
25/32 |
11 |
15 |
4.1 |
|
|
S100-4T-15GB/18.5PB |
15 / 18 |
35 |
32/37 |
15 |
20 |
415*230*205 |
7 |
|
S100-4T-18.5G/22P |
18 / 22 |
38.5 |
37/45 |
18.5 |
25 |
7.1 |
|
|
S100-4T-22G/30P |
22 / 30 |
46.5 |
45/60 |
22 |
30 |
11.4 |
|
|
S100-4T-30G/37P |
30 / 37 |
62 |
60/75 |
30 |
40 |
480*260*215 |
16.5 |
|
S100-4T-37G/45P |
37 / 45 |
76 |
75/90 |
37 |
50 |
17 |
|
|
S100-4T-45G/55P |
45 / 55 |
92 |
90/112 |
45 |
60 |
575*320*310 |
34.5 |
|
S100-4T-55G/75P |
55 / 75 |
113 |
112/150 |
55 |
75 |
36 |
|
|
S100-4T-75G/90P |
75 / 93 |
157 |
150/176 |
75 |
100 |
620*380*310 |
46 |
|
S100-4T-90G/110P |
93 / 110 |
180 |
176/210 |
90 |
120 |
48 |
|
|
S100-4T-110G/132P |
110 / 132 |
214 |
210/253 |
110 |
150 |
49.5 |
|
|
S100-4T-132G/160P |
132 / 160 |
256.0 |
253/304 |
132 |
175 |
500*780*340 |
50 |
---FAQ---
Q1: Are you a manufacturer or trading company?
A: We are a inverter/VFD manufacturer.
Q2: Can you accept to use our logo?
A: we accept OEM production.
Q3:How can i get the after-service?
A: Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
Q4: What is your terms of payment ?
A:We accept T/T, L/C,paypal, western union,etc.The details you can discuss with us.
Q5:Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
Q6: How about your products quality inspection?
A: We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
