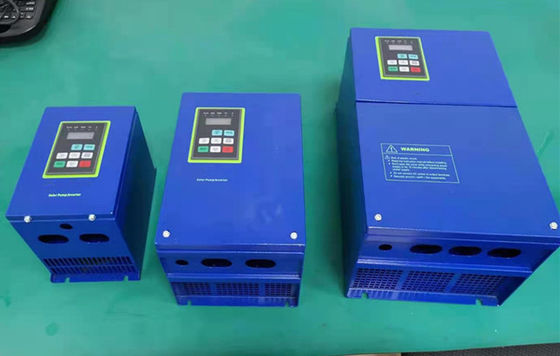

SKD IP20 IP54 IP65 MPPT solar pump VFD solar water pump inverter

Product Details

Place of Origin: Guangdong, China

Brand Name: ZK

Certification: CE IEC

Model Number: SG600-2K2GB-2S

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 100

Packaging Details: Carton box with flim

Delivery Time: 3-7days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 4000per week

Get Best Price
Product Details
Highlight:
Name:
SKD Inverter
MPPT:
With
MPPT Efficiency:
99%
SKD:
Support
Water Proof:
IP20 IP54 IP65
Input Power:
Solar DC And Grid AC
Motor Type:
AM And PMSM
Application:
Solar Pumping
Name:
SKD Inverter
MPPT:
With
MPPT Efficiency:
99%
SKD:
Support
Water Proof:
IP20 IP54 IP65
Input Power:
Solar DC And Grid AC
Motor Type:
AM And PMSM
Application:
Solar Pumping
Product Description

ZK MPPT solar pump inverter SKD solution is avaliable. mainly features:



1. MPPT efficiency more than 99%.

2. Drives well all 1/3 phase AC pumps and PMSM in solar pumping system.

3. VMP of solar panel can set by manual or MPPT automatically tracking.
4. Solar DC & Grid AC power input at same time.
5. Short circuit, over load, over current... motor production.
6. Dry run & Full water tank protections.
7. The PQ (power/flow) performance curve enables calculating the flow output from the pump
8. Ambient temperature for using: -10 to +50˚C.
9. Inverter Power range:
220V/230V from 0.75KW to 110KW. 380V/440/480V from 0.75KW to 250KW.


220V 380V 7.5KW 10HP MPPT solar pump VFD solar pump inverter for irrigation 0
SKD IP20 IP54 IP65 MPPT solar pump VFD solar water pump inverter 1SKD IP20 IP54 IP65 MPPT solar pump VFD solar water pump inverter 2
SKD solution, Power card, Control card, Keypad
SKD IP20 IP54 IP65 MPPT solar pump VFD solar water pump inverter 3

Technical specification:



Recommended input voltage (Voc and Vmp)

Voc 156(VDC), Vmp 130(VDC) for 1S model or 110V AC pump

Voc 372(VDC), Vmp 310(VDC) for 2S model or 220V AC pump

Voc 648(VDC), Vmp 540(VDC) for 4T model or 380V AC pump

Motor type Control for Permanent Magnet Synchronous Motor and Asynchronous Motor pumps (AM and PMSM)
Input power DC power from solar arrays or AC grid power, can input at same time
Maximum DC power input 450VDC for 220VAC output, 800VDC for 380VAC output, 900VDC for 480V output
Rated output voltage Single Phase 220V, 3 Phase 220V/380V/480V
Output frequency range 0~50/60Hz
MPPT efficiency 99%
Ambient temperature range (G-type inverter with submersible pumps, and P type for general pumps
Solar pump control model

Variable Frequency Drive control (AC grid input)

CVT (constant voltage tracking)

MPPT ( maximum power point tracking)

Protection function Dry run protection, Low stop frequency protection, Phase loss protection, Pump Short circuit protection...
Remote control GPRS by PC or mobile APP
Protection degree IP20 (Also IP54/65), Air force cooling
Operating temperature -20-55℃
