Product Details:

Place of Origin: China
Brand Name: ZK
Certification: CE IEC
Model Number: PV100 380V 4kw

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 150 to 200usd
Packaging Details: paper cartons package
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 5000pcs per month
Get Best Price Contact Now

Detail Information

Dc Voltage: 250-800VDC Ac Voltage: 380V To 460
Pumps Type: PMSM, BLDC And IM Currant: 16A
MPPT Efficiency: Above 99.7% Power: 4kw 5.5hp
Water Proof: Yes Dust Proof: 2
Warranty: 18 Months
High Light:

IP65 Solar VFD Drive

,

5.5hp Solar VFD Drive

,

4kw Solar Inverter

Product Description

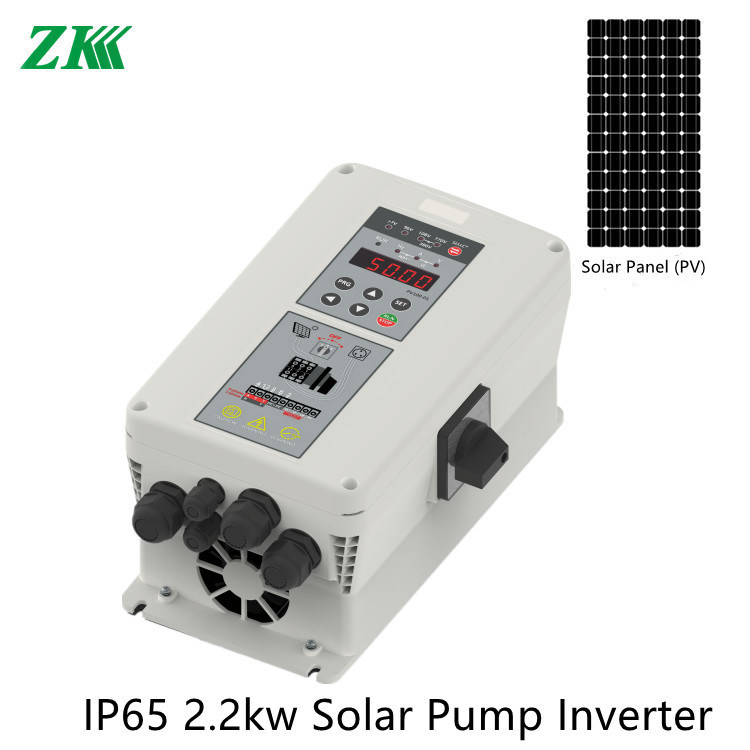

PV100 380V 4kw Solar Pump Inveter IP65 Solar Pump Drive Outdoor Using Solar Pump Vfd

PV100-4T-4KG IP65 380V 4kw solar pump inverter

The PV100 IP65 380V 4kw  water proof and dust proof series solar pump inverter is a green energy products with new solar MPPT technology, which developed based on general frequency inverter ( or VFD), focusing on driving 1/3 phase AC pumps including AC induction pumps or high efficiency pumps with permanent magnet synchronous motor (PMSM) technology.

Compare to on grid or off grid solar inverter, it has soft starter, and multiple functions of motor protection, and very high competitive price.



Produst Features

1.Self-adaptive power point tracking technology with up to 99.6% efficiency

2.Automatic regulation of pump flow

3.Self-adaptation to the drive used in the installation

4.Plug-and-play system design

5.Embedded pump functions

6.Battery-free for most applications

7.Effortless maintenance

8. Excellent water proof and dust proof design

9. Both DC and AC power input at the same time.

10. Driving for 3 phase PMSM and IM pumps.



Models list:

Model

Input voltage

Output for pumps

Power and Pumps

Szie (cm)

PV100-4T-4.0

250-800VDC

3 phase 4.0kw

 up to 4.0kw, IM and PMSM pumps

272*130*178



PV100 4T  solar pump inverter Power switch and wiring:

Compatible DC and AC power supply input at the same time.



IP65 380V 5.5hp Solar VFD Drive 4kw Solar Inverter waterproof and dustproof 0          IP65 380V 5.5hp Solar VFD Drive 4kw Solar Inverter waterproof and dustproof 1



Terminal mark

Name

Description

3,7,11 & 1,5

Three-phase AC power and DC power input terminals

Connect three-phase AC power supply and solar power supply

U  V  W

Inverter output terminal

Connect a three-phase motor

PE

Ground terminal

Inverter electrical groundin

PV100 solar pump inverter special solar pump control parameters list



HF Solar pump control protection function

HF.00

Sleep voltage threshold

Setting range: Under voltage setting ~H9.23, when the DC bus voltage lower than this setting value, it will appear E060 alarm( Low voltage alarm)

150/260V

HF.01

Wake up voltage threshold

Setting range:HF.00 ~ 1000

When the DC bus voltage higher than this value or equal to this value for HF.02 delay time, the E060 alarm will be disappeared in sleep mode

240/360V

HF.02

Awake waiting time

0.0~1000S

120s

HF.03

Stop frequency when low speed ( lowest frequency )

Setting range:0.0 ~ P0.04

When the output frequency is lower than this setting value for a HF.04 lasting time, it will appear E055 alarm . 0.0Hz means there are no lowest stop frequency protection. Once it is started, the timing will be activated. The timing will be reset once the output frequency higher than this value within set time. As long as the output frequency is lower than this value, re-timing again.

20.0Hz

HF.04

Low frequency protection detection time

Setting range: 0.0 ~ 3600S

60.0s

HF.05

Low stop frequency protection reset delay time

Setting range: 0.0 ~ 3600S

Reset time, it will be timing when E055 protection is activated

120.0s

HF.06

Dry run protection current threshold ( under-load protection )



Setting: 0.0 ~100.0%

(100.0% corresponding to P2.06 setting)

When the output current is lower than this set value for a detecting time HF0.7, the dry run function will be activated, and submit E056 alarm.

0.0A means no operation

Once it is started, the timing will be activated. The timing will be reset once the output frequency higher than this value within set time. As long as the output frequency is lower than this value, re-timing again.

0.0%

HF.07

Dry run protection detecting time

Setting range: 0.0 ~1000S

60s

HF.08

Dry run reset relay time



Setting: 0.0 ~ 6000S

Reset time, it will be timing when E056 protection is activated

120s

HF.09

Over load of pumps protection setting

Range:0.0 ~ 2 times * P2.06

If the output current is higher this setting for longer HF10 setting time, it will show E065 alarm.

140%

HF.10

Over load detecting time

Range: 0.0 ~ 1000S

60

HF.11

Over load restore time

Range:0~ 1000S

Restore time calculte from E065 appears, and it will be reset after tis restore time.

120

HF.12

Minimum power input protection threshold

Setting range: 0~ 100.0KW

The minimum power input protection will be activated when output power is lower than this value for a detecting time HF.13, and show E070.

0.0

HF.13

Minimum power input detect delay time

Setting range: 0.0 ~ 1000S

60

HF.14

Automatic recovery time in minimum power input protection mode

Setting range:0.0 ~ 1000S

Reset time,timing when E070 is be activated.



120.



Solar arrays selection tables as AC pumps.

18PCS solar panels connect in series to get enough voltage input.  (vmp 540VDC, Voc 660VDC)

Connecting solar panels in series to get enough voltage input, and then calculating how much strings for getting enough power.

Take a solar panels Voc38VDC, Vmp 31VDC, 265W for exampling.

Please check if enough DC voltage input for system, Voc and Vmp. 2S (310vmp), 380V (540vmp).

Input voltage, power solar arrays selection
Pumps model Inverter models Vmp Voc Total Power of solar arrays
380VAC pumps D3/T3 (Max 800VDC) 380*1.41=540VDC 648VDC

≧ (1.3 to 2.0) rated power of pumps

It is also depend on the quality of solar panels. The more power input, the better performance.

480VAC pumps D5/T5 ( Max 900VDC) 480*1.41=677VDC 812VDC



Solar panel spec.:265w, 38Voc (Open circuit voltage), 31Vmp ( Voltage at Pmax)
Inverter models Power of pump Connection in series (PCS) (Vmp) Connect in parallel ( Strings) Power Total (PCS)
S1/D1 (110VAC) 0.75kw to 1.0kw 4 or 5 PCS 1* strings 5*1=5
S2/D2 (220VAC) 0.75kw to 1.5kw 10PCS 1* strings 10*1=10
S2/D2(220VAC), Max 450vdc 2.2kw 11PCS 1* strings 11*1=11
T3/D3(380VAC) 0.75kw to 2.2kw 18PCS 1* strings 18*1=18
T3/D3(380VAC) 3.7kw 20PCS 1* strings 20*1=20
