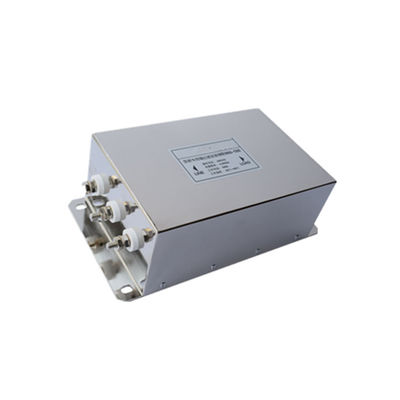

• 220V 380V Three Phase EMC Sine Wave Filter For Solar Pump Inverter VFD
220V 380V Three Phase EMC Sine Wave Filter For Solar Pump Inverter VFD

220V 380V Three Phase EMC Sine Wave Filter For Solar Pump Inverter VFD

Product Details:

Place of Origin: Shenzhen China
Brand Name: ZK/ZUN
Certification: ISO CE
Model Number: 0.75kw-500kw

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000 units per month
Get Best Price Contact Now

Detail Information

Nominal Center Frequency: 50/60Hz Rated Current: 4-1200A
Rated Voltage: 250/440/480VAC Name: EMC Sine Wave Filter
High Light:

220V Sine Wave Filter

,

EMC Sine Wave Filter

,

EMC Filter For VFD

Product Description

C0.75kw To 500kw 220V 380V 480V Sine Wave Filter For Solar Pump Inverter Vfd



ZK SK SERIES Sine Wave Filter For Solar Pump Inverter, frequency inverter



Quick details



The filter reactor is used in the low-voltage filter cabinet, which is connected in series with the filter capacitor and tuned to a resonant frequency to absorb the harmonic current of the corresponding frequency in the power grid. There are a large number of harmonic sources such as rectifier, converter and frequency converter in low-voltage power grid. The high-order harmonic generated by them will seriously endanger the safe operation of main transformer and other electrical equipment in the system. After the filter reactor and capacitor are connected in series, it can not only effectively absorb the harmonic of the power grid, but also improve the power factor of the system, which plays a great role in the safe operation of the system



-Excellent interference suppression for Dv/Dt.
-Over-voltage protection,reduce the electromagnetic interference of inverter.
-Wide working current range from 5A to 1200A.
-High quality components ensure the safety and reliability of filters.
-As output filter for inverter,reduce the loss of inverter and motor choke.
-Various connection optional:bolt and busbar terminala.



Specification



Product Name Three Phase EMC Filter
Model SK series
Rated Voltage 250/440/480VAC
Rated Current 5A~1200A
Operating Frequency 50/60Hz
Temperature range HPF 25/085/21
Test Voltage(1 min) Line to Ground :1450VAC
Line to Line :2700VDC



Model List





Rated Power(kw) Rated Current(A) Voltage(VAC)
0.75KW/1.5KW 5 220/380/480
2.2KW/3.7KW 8 220/380/480
5.5KW/7.5KW 16 220/380/480
11KW/14KW 30 220/380/480
18.5KW/22KW 45 220/380/480
30KW/37KW 75 220/380/480
45KW 100 220/380/480
55KW 120 220/380/480
75KW 150 220/380/480
90KW 200 220/380/480
110/132/150KW 300 220/380/480
160KW/210KW/220 KW 420 220/380/480
250KW/260KW 500 220/380/480
280KW/315KW 600 220/380/480
400KW 800 220/380/480
500KW 1000 220/380/480
